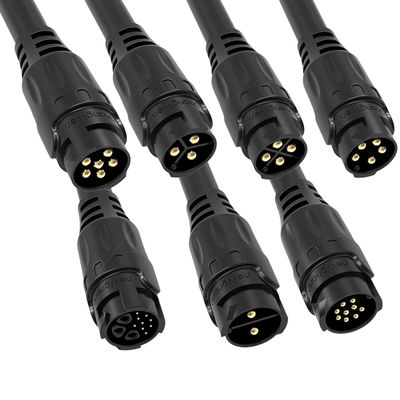

M19 Series Industrial Outdoor 3+9pin 2pin 3pin 4 Pin 5 Pin 6pin 9pin Male Connector
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Type | SW19 zelfsluitende reeks | Sollicitatie | Industrieel |
|---|---|---|---|
| Geslacht | Mannelijk | Industriële elektronica | Accessoires |
| Markeren | 3+9pin M19 Connector,9pin M19 Connector |
||
Productomschrijving
Products Description
SW19 Self-locking series
M19 series is an industrial connector, which includes male plug, female plug and male socket.
Feature:

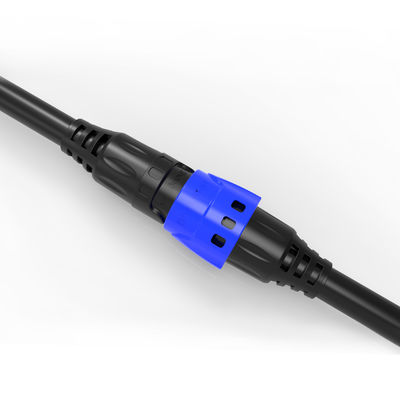

☑Quick, simple self locking system☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67 ☑All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification.
3+9 pin

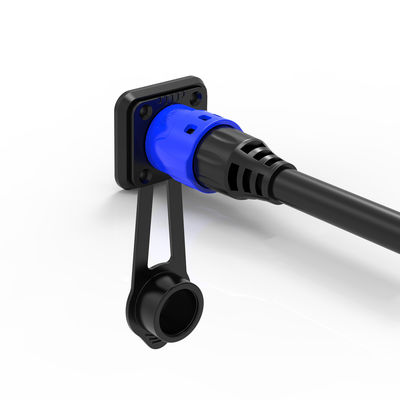

Male plug & Female plug & Male socket
2 pin
Male plug & Female plug & Male socket
3 pin
Male plug & Female plug & Male socket
4 pin
Male plug & Female plug & Male socket
5 pin
Male plug & Female plug & Male socket
6 pin
Male plug & Female plug & Male socket
9 pin
male plug & female plug & male socket
1.Electrical parameters
Pins | 3+9pin, 2pin, 3pin, 4pin, 5pin, 6pin, 9pin |
Rated current | 20A |
Rated voltage | 300V AC |
Withstand voltage | 1500V |
Insulation resistance | ≥100mΩ |
Contact resistance | ≤10mΩ |
2.Mechanical parameters
Service life | >1000 times |
Power line | Φ4.5mm-Φ11mm |
Cable size | 0.3mm²-2.5mm²(22AWG-12AWG) |
Type of terminals | Screw terminal and soldering terminal available |
3.Material and environmental parameters
Shell | High performance engineering plastics |
Contacts | Copper alloy |
Contact diameter | Φ2.4mm |
Protection degree | IP67 |
Flame-retardant grade | UL94-V0 |
Temperature range | -40℃~105℃ |
4.Size reference (unit /mm)
Male plug

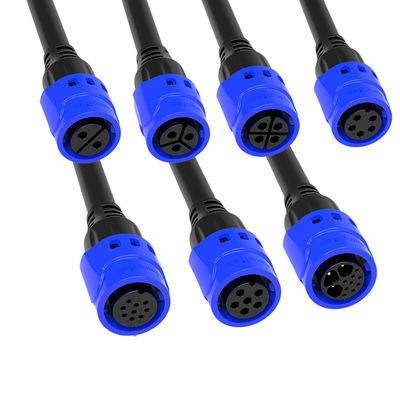

Female plug

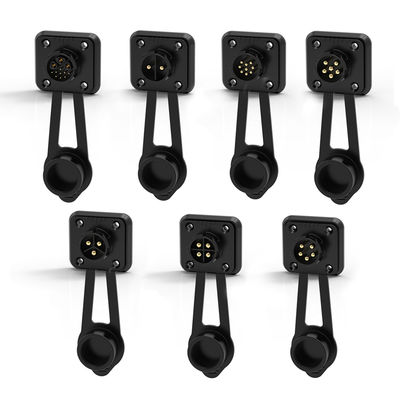

Male socket

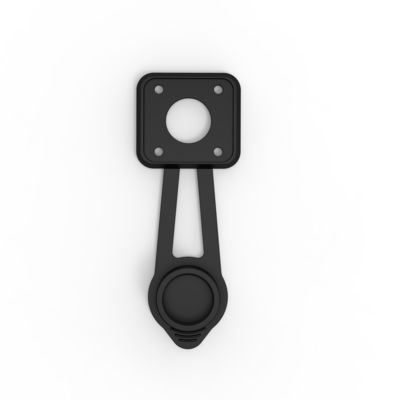

Waterproof gasket
5.Operating reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
