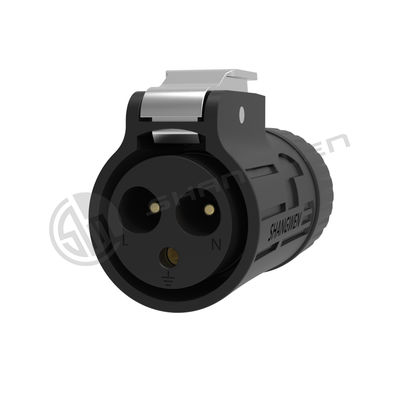

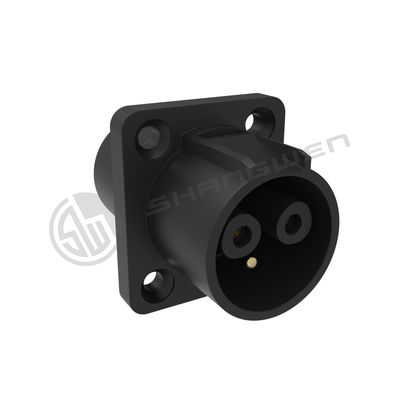

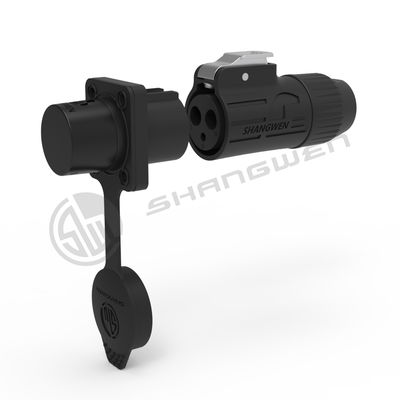

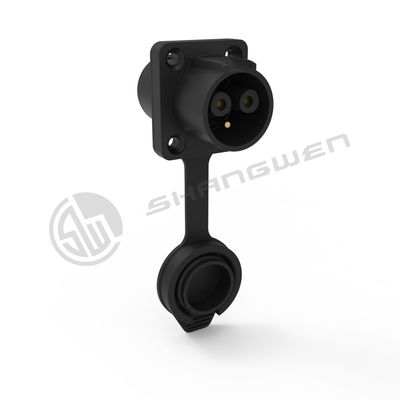

Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector

  • Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector
  • Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector
  • Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector
  • Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector
  • Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector
Plaats van herkomst Guangdong, China
Merknaam SHANGWEN
Modelnummer SWM3A-ZB
Min. bestelaantal 10 stuks
Prijs $1.30-1.70 / piece

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Sollicitatie Stroom Geslacht Man/vrouw
IP -niveau IP65, IP67 Type geleide vertoningsschakelaar
Industriële elektronica Accessoires
Markeren

Large Current Charge Connector

,

IP65 Powercon Connector

,

3-Pin Powercon Connector
Laat een bericht achter
Productomschrijving
Products Description
Power connector series-3 core female powercon（card buckle type）
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 0
Model : SWM3A-ZB ( outdoor use-black )
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑Black and white in two colors
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Multi-style inner core design to meet the needs of various industries
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 2
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 4
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 6
1.Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²-4mm²
Wire stripping length
7-8mm
Type of terminals
Soldering
3.Material and environmental parameters
Shell&insulated parts
PBT
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4.Size reference (unit /mm)
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 8
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 10
Application area
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 12
Company Information
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 14
Patent & Certification
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 16
Exhibition activities
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 18
Packaging reference
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 20
Payment and logistics
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 22
FAQ
Black IP65 Powercon Connector 3-Pin Waterproof Outdoor Aviation Plug with Female Socket IP67 Large Current Charge Connector 24
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
