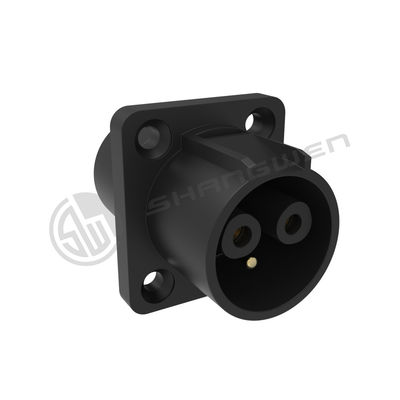

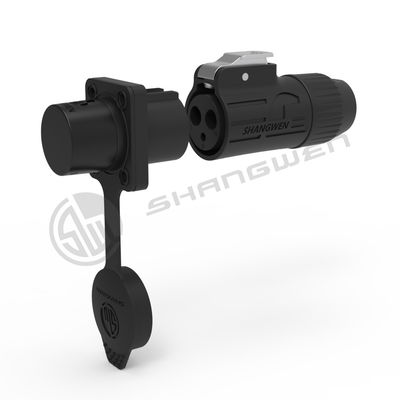

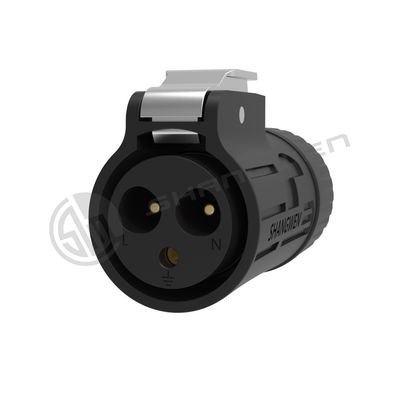

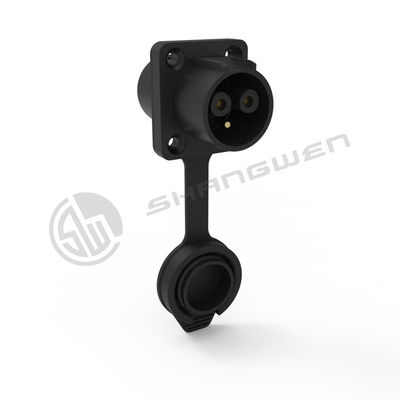

IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision

  • IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision
  • IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision
  • IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision
  • IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision
Place of Origin Guangdong, China
Merknaam SHANGWEN
Model Number SW3AM-TB
Minimum Order Quantity 10 pieces
Prijs CN¥20.02-37.17/pieces

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
IP level IP65,ip67 Type led display connector
Application Power Gender Male
Industrial electronics accessories
Markeren

Waterproof Powercon LED Connector

,

IP67 Waterproof LED Connector

,

Precision Waterproof LED Connector
Laat een bericht achter
Productomschrijving
Products Description
Power connector series-3 core male powercon（Metal material ,card buckle type）
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The socket is made of zinc alloy with complete electromagnetic and radio frequency interference protection.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 0
Model : SW3AM-TB ( outdoor use )
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Zinc alloy internal structure and base, with complete electromagnetic and radio frequency interference protection
☑Multi-style inner core design to meet the needs of various industries
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 1
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 2
1.Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
4mm²
Wire stripping length
φ9-12mm
Type of terminals
Soldering
3.Material and environmental parameters
Shell&insulated parts
PBT
Hardware metal
Zinc alloy
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4.Size reference (unit /mm)
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 3
Application area
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 4
Company Information
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 5
Patent & Certification
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 6
Exhibition activities
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 7
Packaging reference
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 8
Payment and logistics
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 9
FAQ
IP67 Precision Waterproof Powercon LED Connector AC Female/Male Socket 3-Pin Trailer Plug Three-Pole Socket Precision 10
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
